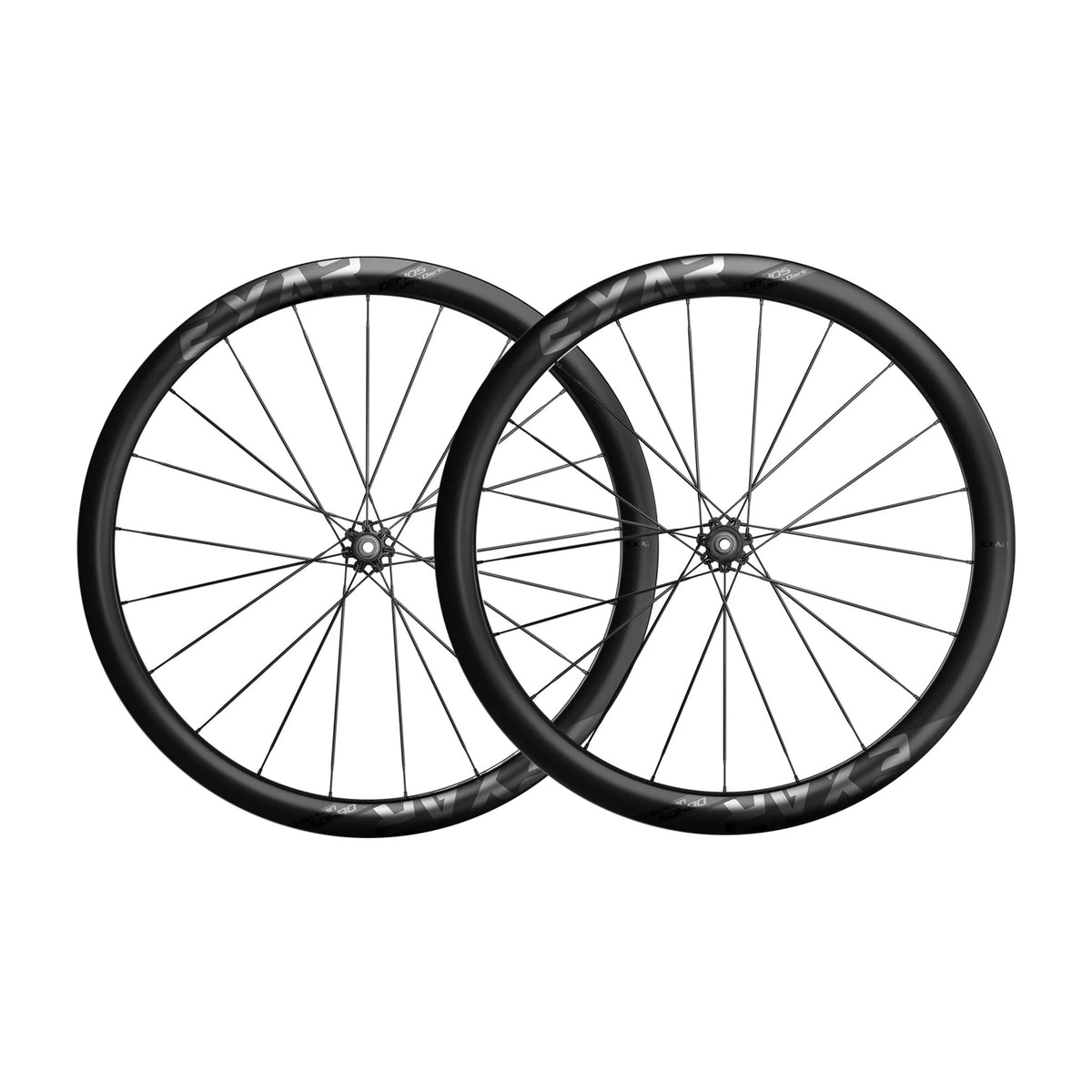

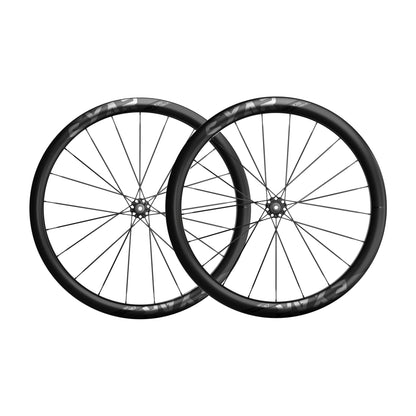

Magene EXAR Ultra Dark Carbon Disc Wheelset

Magene EXAR Ultra Dark

Night-Black HI-MOD Carbon Disc Wheelset with Carbon Spokes – 40/45 or 50/58mm

🔥 Born for disc brakes, finished in night black 🔥

🚲 Two disc-brake builds: DB405 (40/45mm) and DB508 (50/58mm)

🚲 Wheelset weight 1305 g (DB405) or 1390 g (DB508)

🚲 HI-MOD carbon rims and VONOA carbon spokes at 2.8 g each

🚲 30mm external / 23mm internal width, tubeless-ready

🚲 36T flat ratchet and steel bearings

🚲 Shimano 11-speed or SRAM XDR freehub

More Information

The EXAR Ultra Dark is the night-black version of Magene's lightweight disc wheelset, with dark logos and a clean, understated look. HI-MOD carbon rims and spokes cut weight while keeping stiffness high, for a quick response when climbing or accelerating.

The rims are asymmetric in height: the front is lower (40mm or 50mm) so it is easier to control, and the rear is deeper (45mm or 58mm) for stability, aero benefit and crosswind resistance. VONOA carbon spokes weigh just 2.8 g each, which Magene states is about 30% lighter and 30% stronger in tension than top-tier steel spokes. The hubs use a larger flange diameter to reduce stress at the spokes and a 2:1 balanced lacing pattern.

The 23mm internal width suits 28–32c tyres and gives a flatter tyre-to-rim surface. The wheelset works with tubeless and clincher tyres, and is designed to run with TPU inner tubes. Compared with the EXAR Ultra, the Ultra Dark uses steel bearings, which adds a little weight and lowers the cost.

Available Options

✔ DB405 Ultra Dark – 40mm front / 45mm rear, 1305 g

✔ DB508 Ultra Dark – 50mm front / 58mm rear, 1390 g

✔ Shimano – Shimano 11-speed freehub (standard)

✔ XDR – SRAM XDR freehub for 12-speed SRAM cassettes

Specifications

✔ Brake: Disc brake

✔ Rim Depth: DB405 40mm / 45mm, DB508 50mm / 58mm (front / rear)

✔ Rim Width: 30mm external / 23mm internal

✔ Weight: DB405 1305 g, DB508 1390 g (wheelset, ±3%, without rim tape and valve)

✔ Rim Material: HI-MOD carbon fibre

✔ Spokes: HI-MOD carbon fibre (VONOA, 2.8 g each)

✔ Hub: Steel bearings, 36T flat ratchet (DT-compatible, replaceable); front 21H 2:1, rear 21H 2:1

✔ Axle Spacing: 100/142mm thru-axle

✔ Freehub: Shimano 11-speed (standard) or SRAM XDR; Campagnolo N3W available separately

✔ Cassette Compatibility: Shimano 8–12s with the standard freehub

✔ Tyres: Tubeless or clincher; 25c and wider, 28–32c suggested

✔ Max Tyre Pressure: 110 psi (clincher), 100 psi (tubeless)

✔ Includes: Front and rear wheel, 2 x tubeless rim tape, 50 x rim plugs, 2 x tubeless valves, manual
