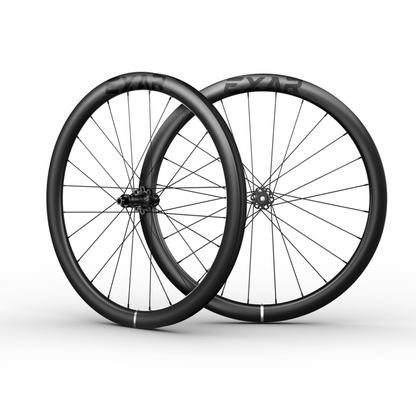

Magene EXAR Pro Gravel Carbon Wheelset

Magene EXAR GR45 Pro

HI-MOD Carbon Gravel Wheelset – 45mm Deep, 32mm Wide, UCI Approved

🔥 Built for gravel: wide rim, steel spokes and 24-hole hubs 🔥

🚲 45mm aero rim depth, wheelset weight 1490 g

🚲 32mm external / 25mm internal width, made for wide gravel tyres (28c minimum, 35c and above ideal)

🚲 Tubeless-ready and tape-free, as the rim has no spoke holes

🚲 Pillar Wing20 steel spokes, 24H hubs (front 1:1, rear 2:1)

🚲 36T flat ratchet, Shimano 11-speed freehub as standard

🚲 UCI approved

More Information

The GR45 Pro takes the EXAR Pro design to gravel. HI-MOD carbon rims keep the wheelset light while the rim, spokes and hubs stay stiff, which helps when sprinting. The 45mm depth cuts frontal wind resistance while balancing torsional and lateral stiffness for solid power transfer under high torque.

The wide 32mm external / 25mm internal rim gives better aerodynamics in turbulent crosswinds and more stability. With 35c and wider tyres, it supports the tyre better, reducing deformation for sharper cornering and steering precision, and lets you run lower pressures for comfort on rough ground. It is compatible with tubeless and clincher tyres, and because the rim has no spoke holes it is tubeless-ready without rim tape.

The front hub uses a 24-hole, 1:1 lacing with crossed spokes on both sides, so more spokes engage under braking for stability and smoother braking, and a wider flange spacing improves spoke bracing angles and lateral stiffness. The rear hub uses 24-hole 2:1 lacing to reinforce drive-side efficiency. Pillar Wing20 steel spokes absorb vibration and resist impacts better than carbon spokes on rugged terrain.

Freehub

The GR45 Pro comes with a Shimano 11-speed freehub as standard. For SRAM XDR (12-speed), order the Magene EXAR Freehub Body separately, or WhatsApp us if you need a Campagnolo N3W freehub.

Specifications

✔ Brake: Disc brake

✔ Rim Depth: 45mm

✔ Rim Width: 32mm external / 25mm internal

✔ Weight: 1490 g (wheelset, ±3%, without quick-release skewer and rim tape)

✔ Rim Material: HI-MOD carbon fibre

✔ Spokes: Pillar Wing20 steel spokes

✔ Hub: 24H front (1:1) and 24H rear (2:1), 36T flat ratchet (replaceable)

✔ Axle Spacing: 100/142mm thru-axle

✔ Freehub: Shimano 11-speed (standard); SRAM XDR and Campagnolo N3W available separately

✔ Tyres: Tubeless or clincher; 28c and wider, 35c and above ideal

✔ Max Tyre Pressure: Clincher 120 psi, tubeless 110 psi

✔ Certification: UCI approved

✔ Includes: Front and rear wheel, 2 x tubeless valves, manual
