Evolve CIMA GR Frameset
Evolve CIMA GR Frameset
Couldn't load pickup availability
Kindly Note:
The stock availability may not be up to date. Kindly contact us via WhatsApp for confirmation.
Ultra-Lightweight
750g
M-SIZED FRAME WEIGHT (UNPAINTED)
Built with evolve’s signature lightweight philosophy
Advanced Carbon Layup
TORAYCA® T1100 & T800
M40 High-modulus carbon for the ideal balance of weight, strength, and durability.
Optimized Stiffness
+7.5% BB | +1.2% Head Tube
More efficient power transfer and sharper handling where it matters most.
Relentless Pursuit of Speed
Up to 17.28W saved at 35km/h
Engineered to outperform top-tier gravel frames in aerodynamic efficiency.
PREMIUM COMPONENTS SUPERIOR PERFORMANCE
STANDARD STEEL HEADSET BEARINGS
BSA THREADED BOTTOM BRACKET
SRAM UDH DERAILLEUR HANGER
COLORWAYS

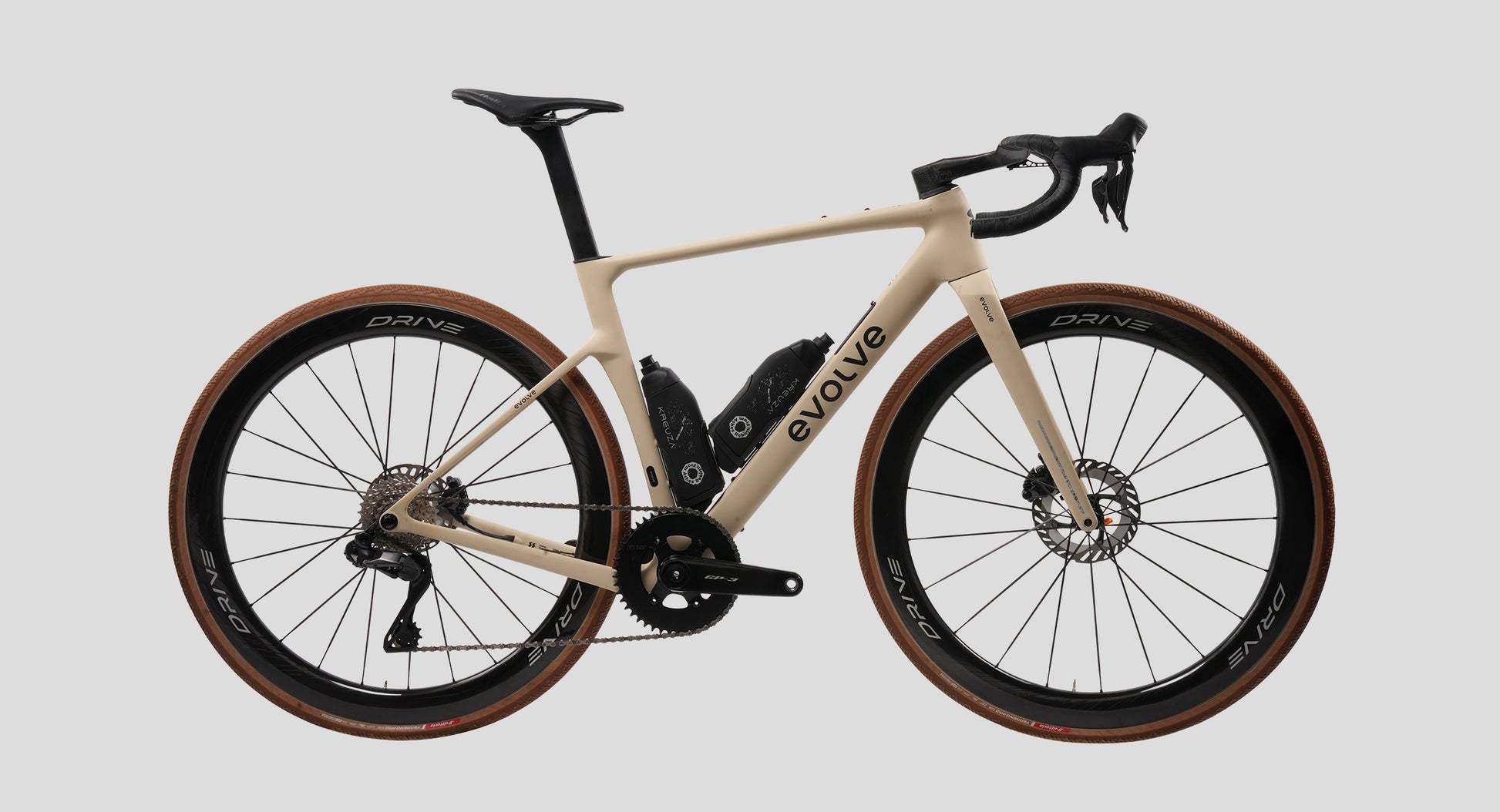

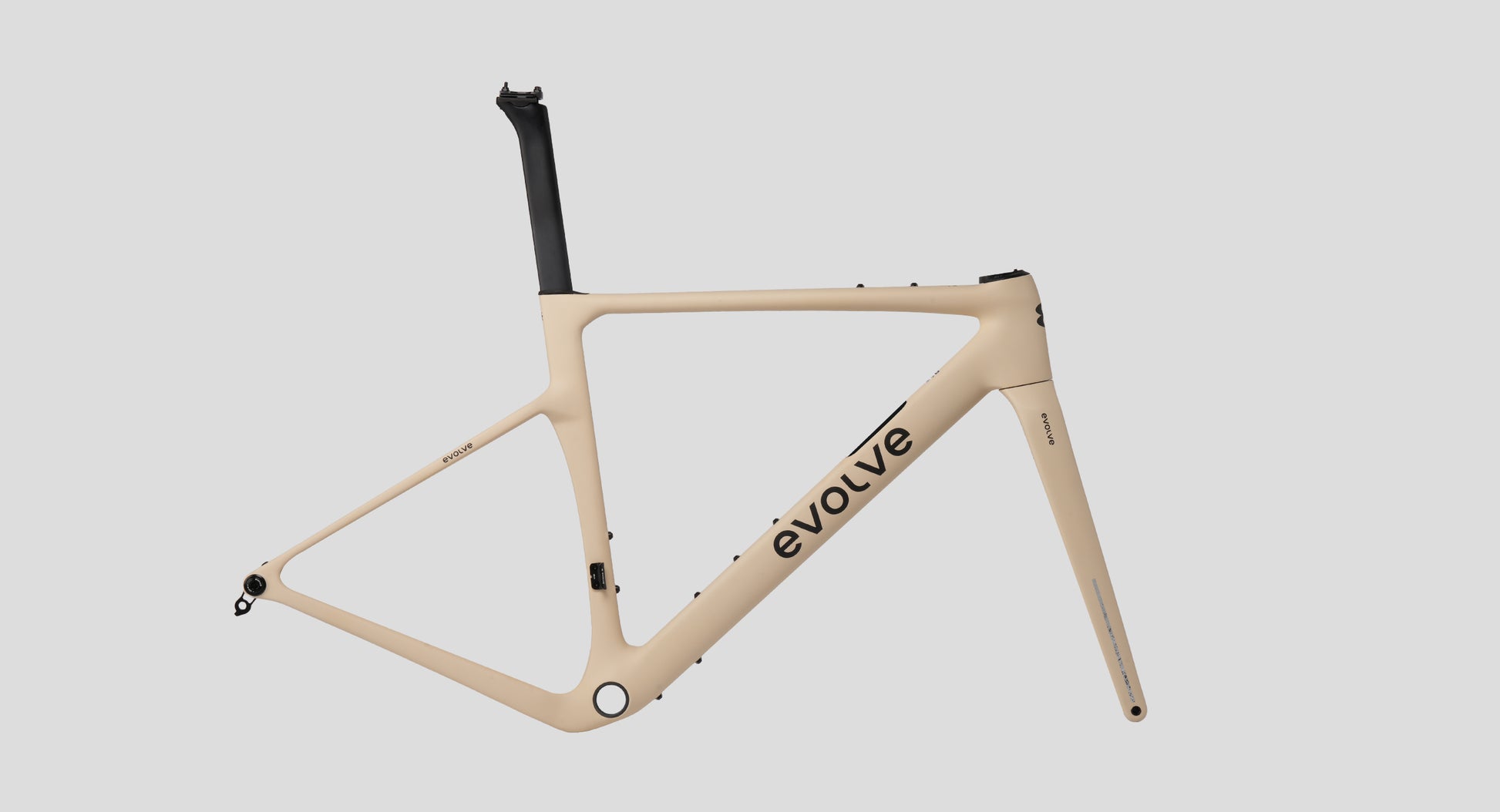

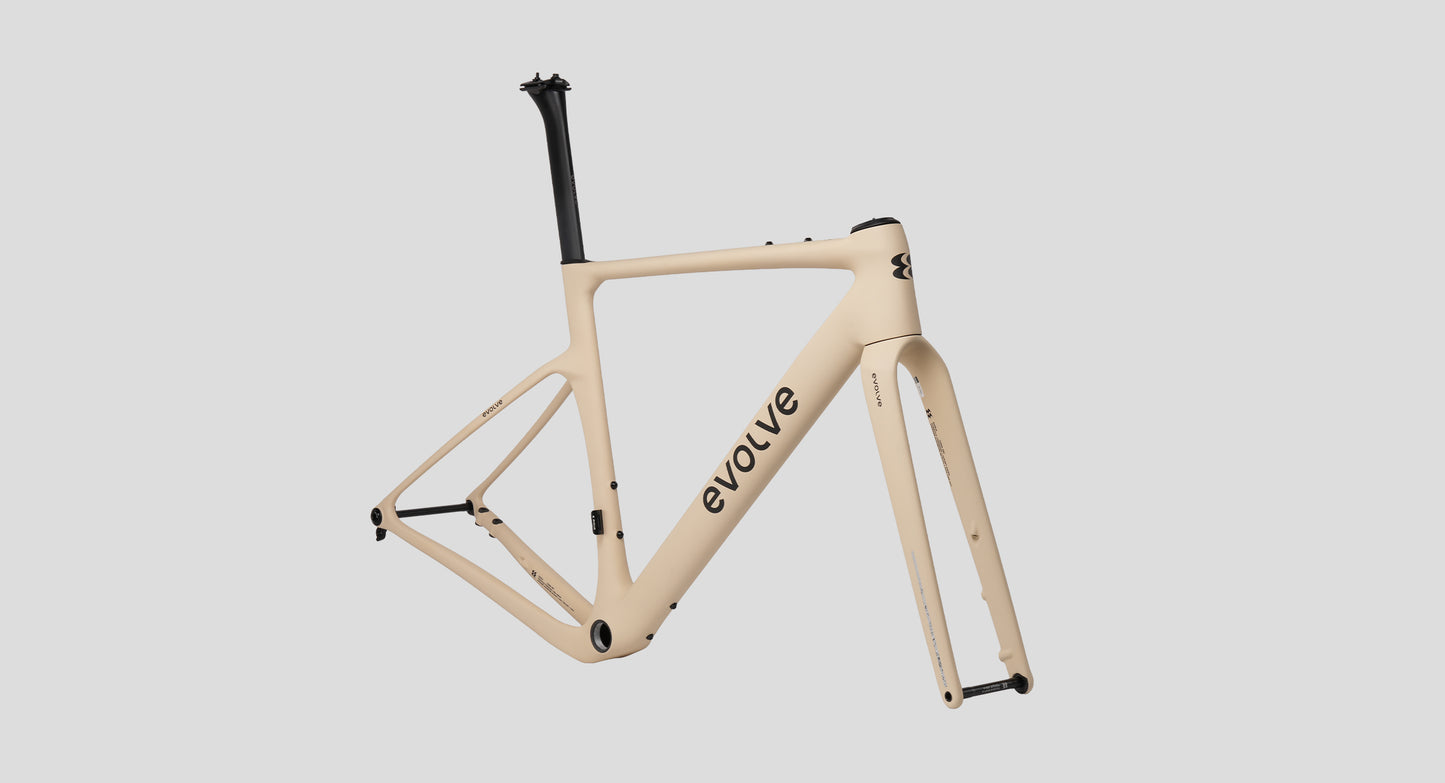

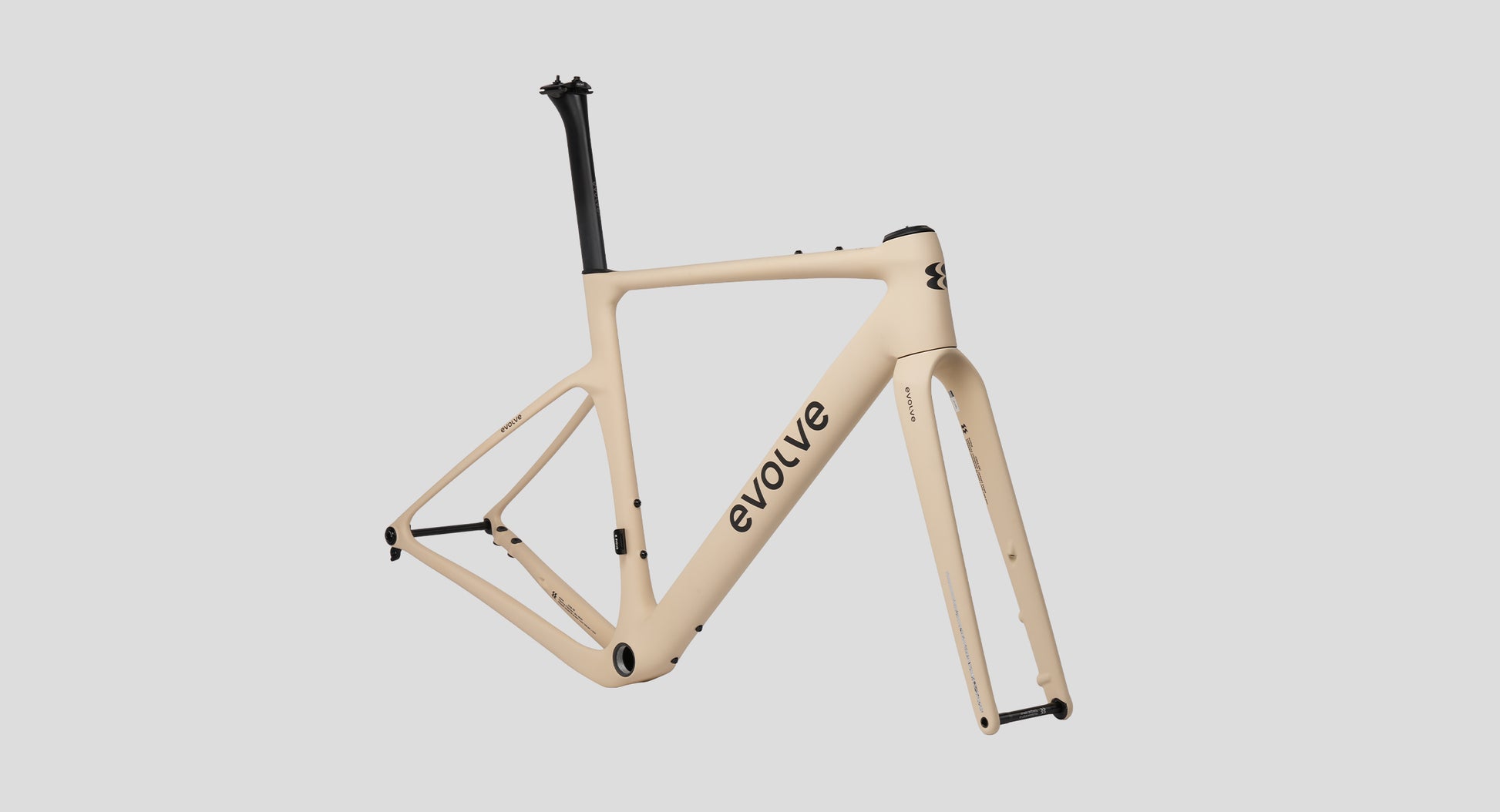

Designed for riders who seek a deeper connection with nature, Sahara Nude brings a raw, tactile experience to the frame.
Its textured finish sets it apart from traditional paintwork,
evoking the feeling of natural stone: subtle, grounded, and unmistakably real.

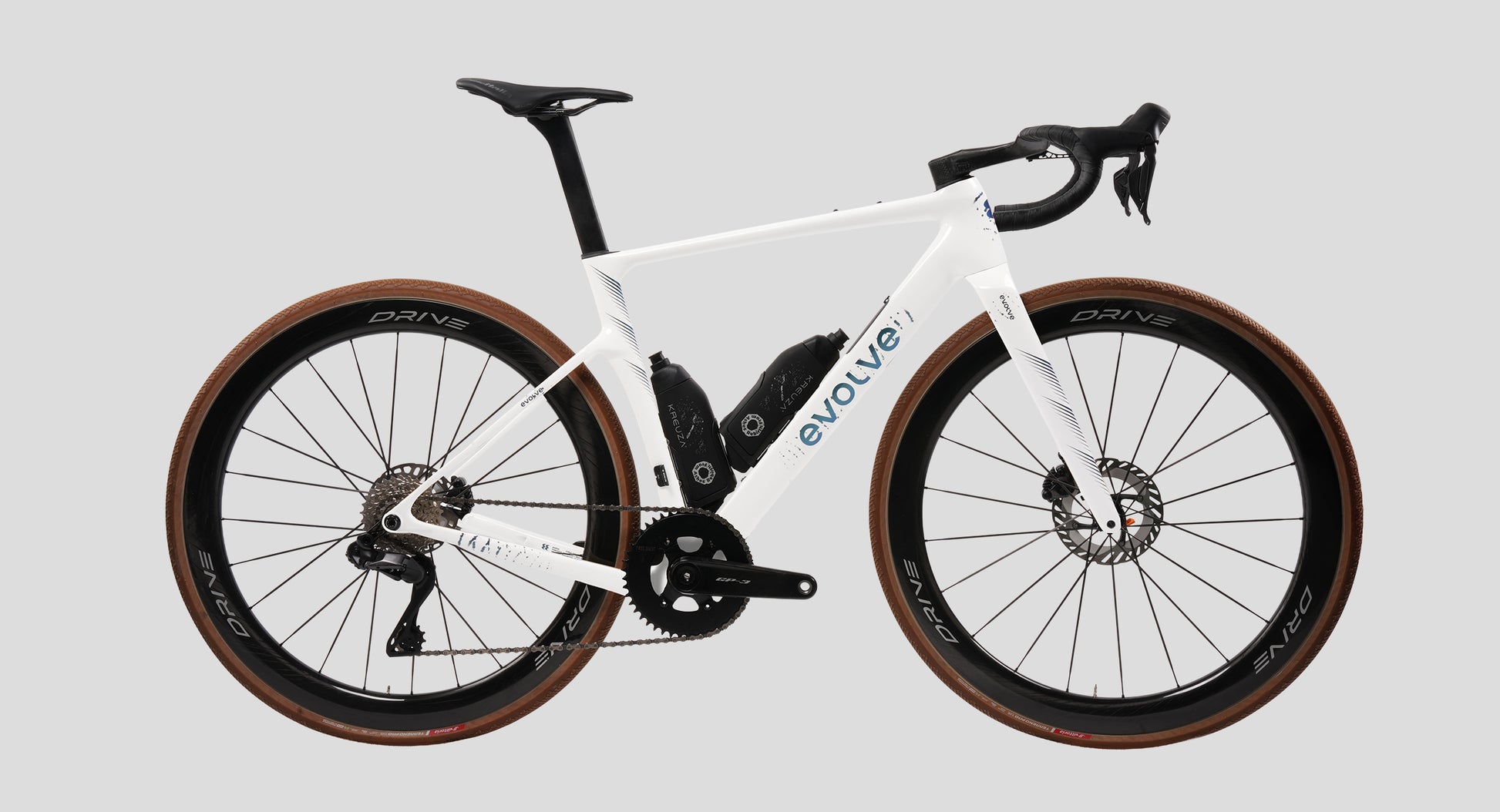

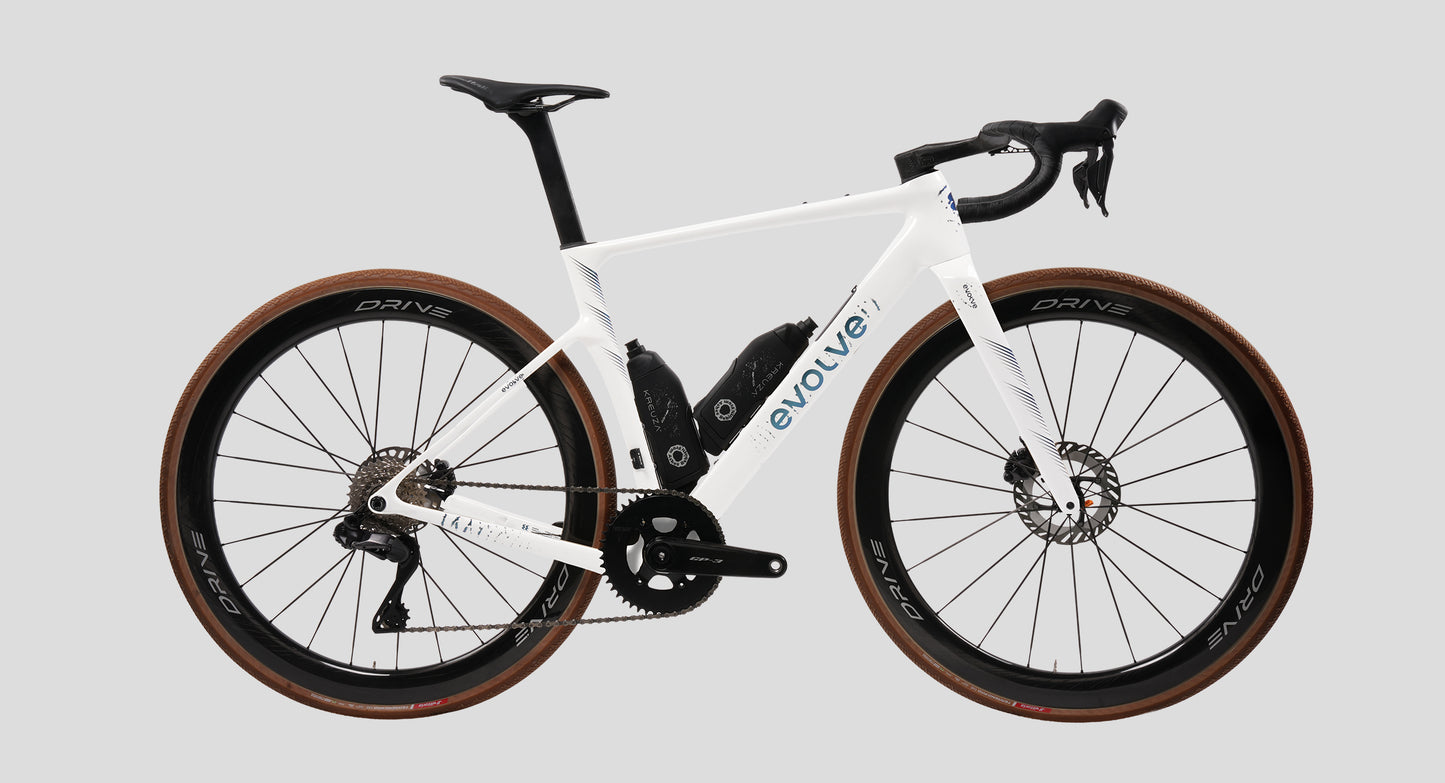

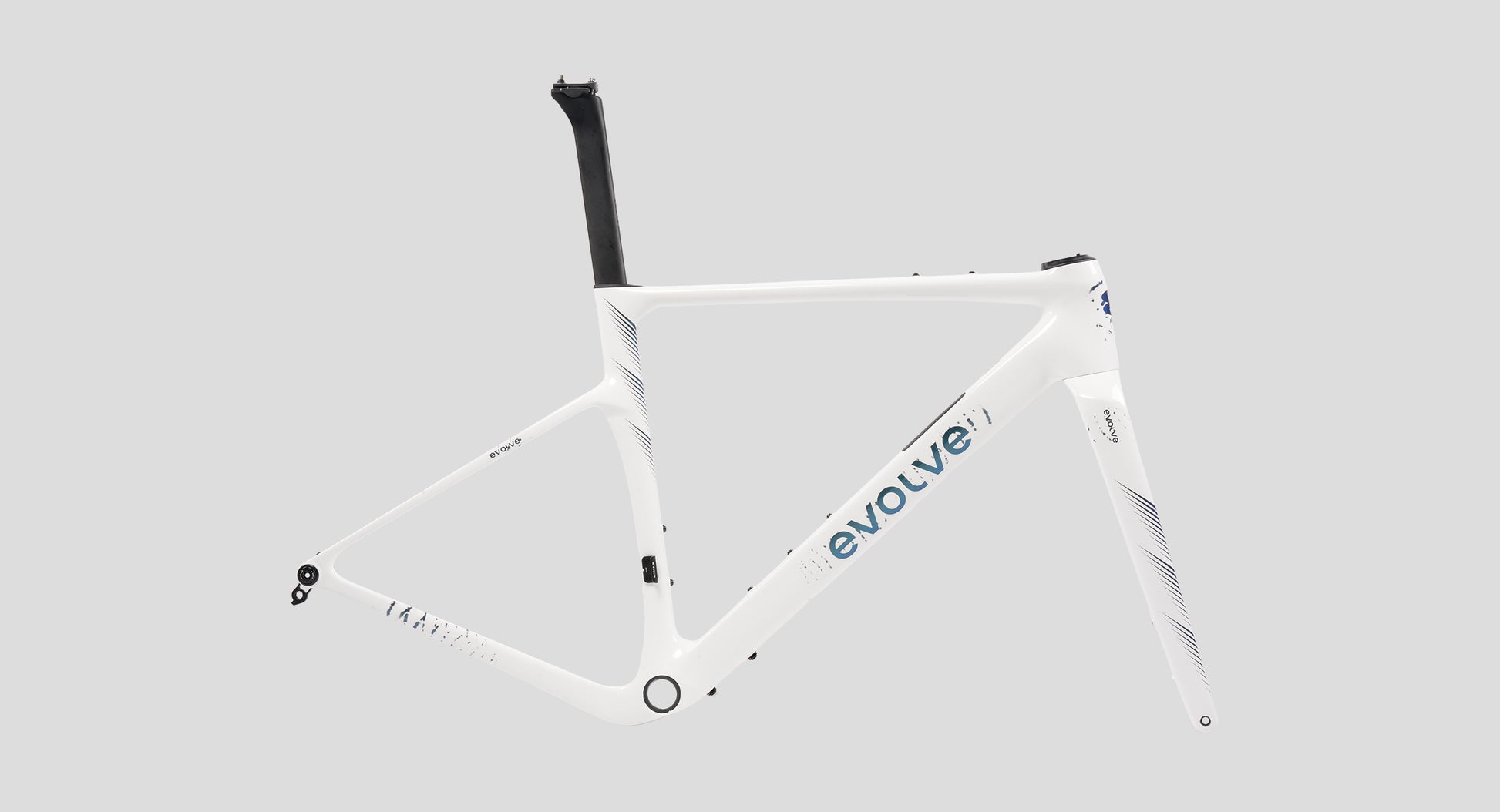

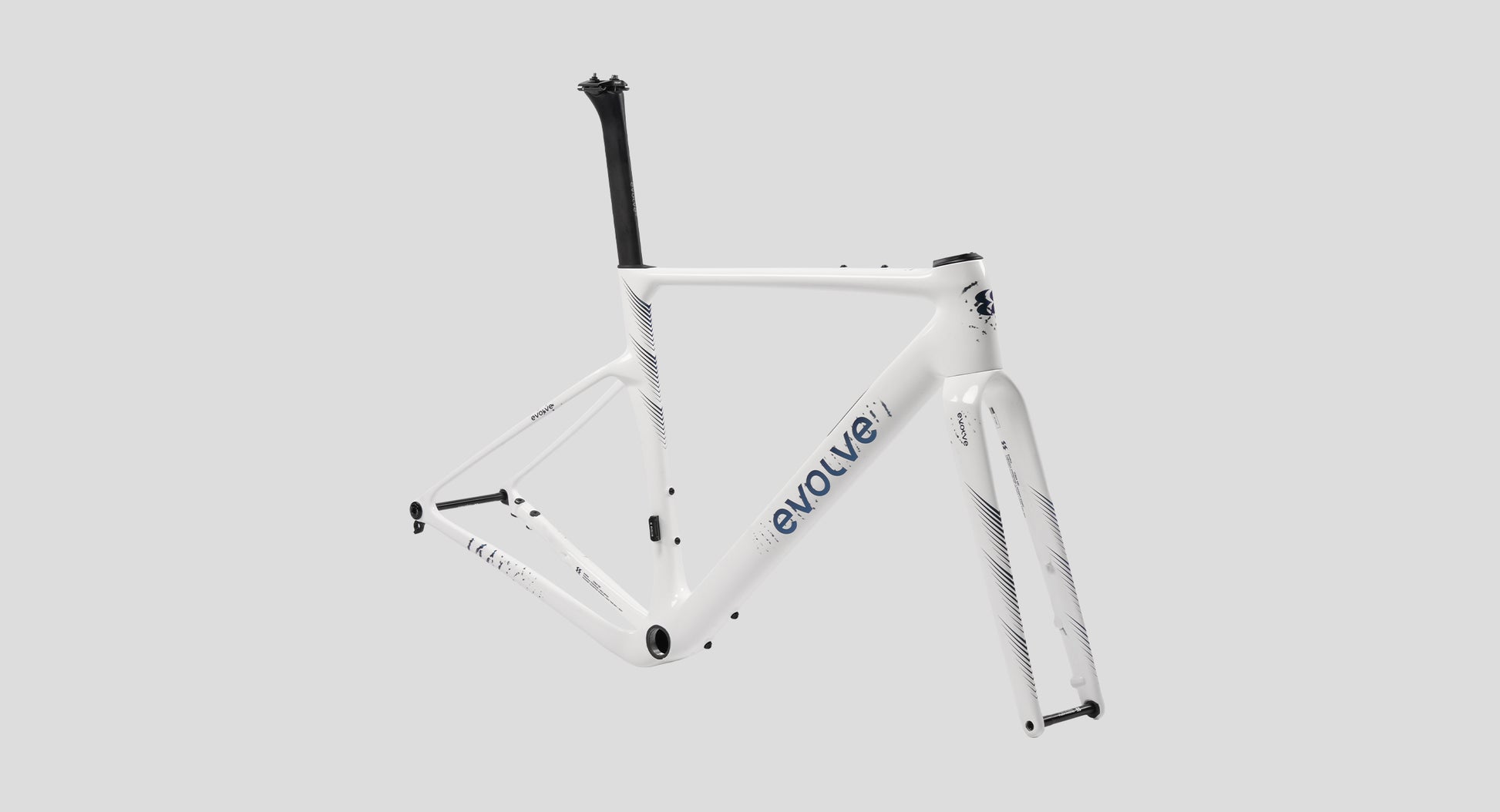

Inspired by the sailfish, the fastest creature in the ocean, this colorway draws from the elegance and efficiency of nature’s most powerful swimmer.
Every line, structure, and pattern reflects the sailfish’s ability to cut through water with precision and speed — a tribute to the wisdom of the ocean.
GEOMETRY
| Frame Material | TORAYCA T1100, T800 & M40 |
| Frame Sizes | XS, S, M, ML, L, XL |
| Frame Weight | 750g (M-sized; unpainted) |
| Fork | Offset 54.0mm (XS \ S \ M); Offset 50mm (ML \ L \ XL) |
| Fork Weight | 375g (unpainted) |
| Headset | Standard Steel Bearing |
| Headset Bearing Size | 40.5 mm ID x 49.5 mm OD x 6.5 mm |
| Steerer Tube | 28.6 mm (OD1) |
| Seatpost | evolve® Seatpost |
| Seatpost Weight | 141-160g（Parts included） |
| Saddle Rail Clamps | 7x7, 7x9, 7x10 |
| Bottom Bracket | BSA Threaded Bottom Bracket,68mm Width |
| Cable Routing | Internal |
| Rear Derailleur Hanger | Sram UDH M12x1mm |
| Brake Type | Flat Mount Disc Only |
| Max Rotor Size | 160 mm/180 mm (F), 140 mm/160 mm (R) |
| Max Chainring | 1X 50T 2X: 48/31T (Shimano grx) 50/34T (Shimano 12S) 48/35T (SRAM ROAD) |
| Front Axle | 12 x 100mm |
| Rear Axle | 12 x 142mm |
| Wheel Size | 700C |
| Tire Clearance | 700×50C / 29er×2.0“ |
| Manufacturer Warranty | Limited Lifetime Warranty |
| Certification | UCI Approved; CE Certified |
| Limited Rider Weight | 109kg |
| Compatible Groupsets | Internal cable routing; 1x Mechanical & Electronic Compatible 2x Electronic Drivetrain Only |
