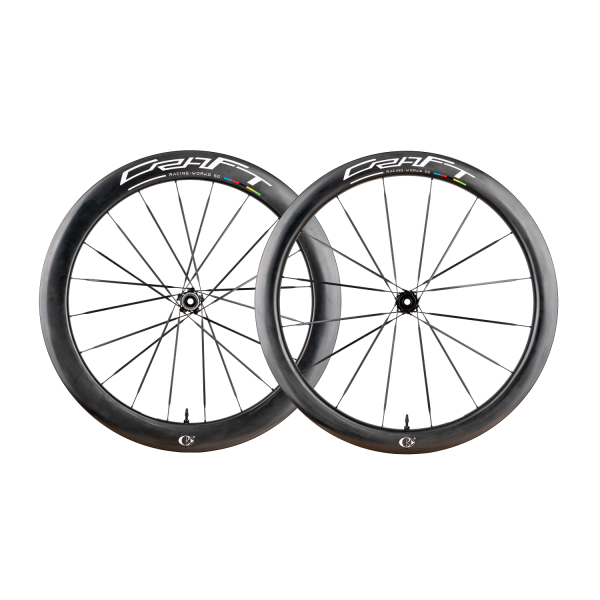

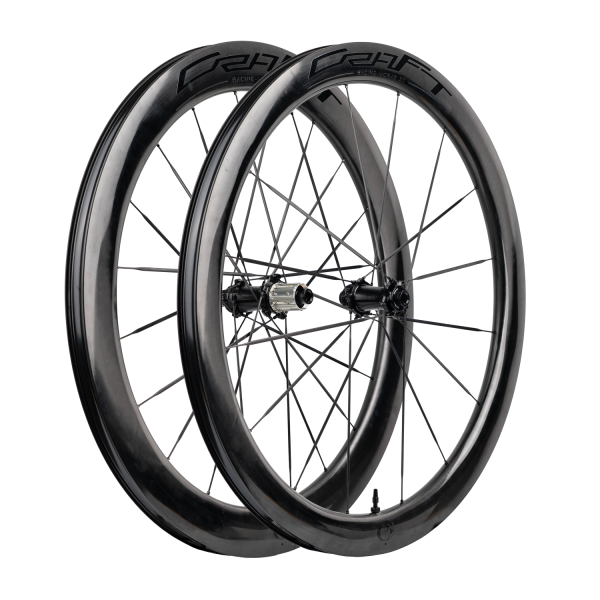

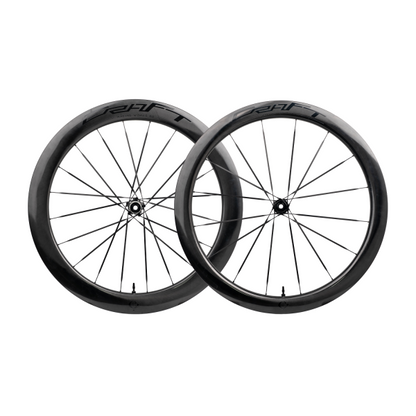

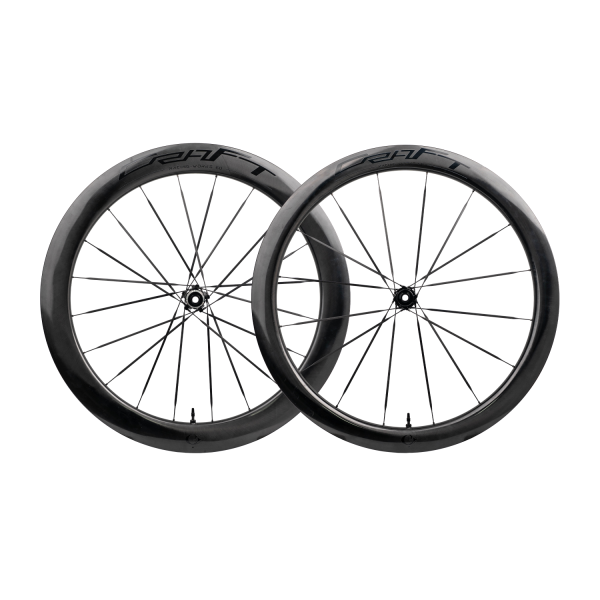

CRW Works CS5060 Carbon Disc Wheelset | 2026

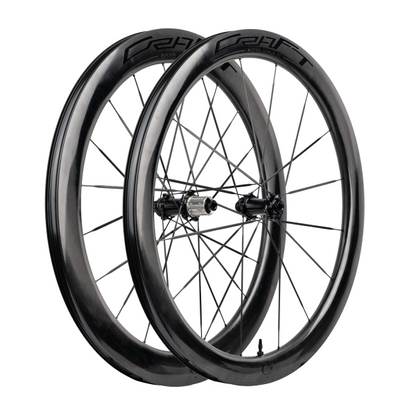

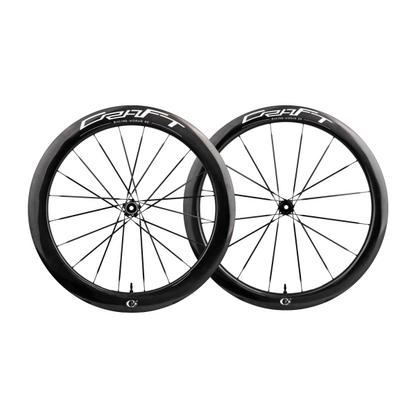

CRW Works CS5060 Carbon Disc Wheelset

Lightweight Carbon-Spoke Disc Wheelset – Wider Rear Rim, 40g Lighter for 2026

🔥 50mm front / 60mm rear for more aero speed at just 1250g 🔥

🚲 Rim depth: 50mm front / 60mm rear

🚲 Rim width: 25mm internal / 34mm external front, 24mm / 32mm rear

🚲 Weight: 1250g ±2% per set

🚲 Hubs: 36T star ratchet freehub with tuneable bearing preload

🚲 Spokes: 16 front / 20 rear aero-blade carbon spokes

🚲 Tubeless-compatible hooked rim, 28–45mm tyres

More Information

The CS Series has built a reputation for being among the lightest disc-brake wheels in its class while staying comfortable and responsive. For 2026 CRW refined the formula rather than reinventing it: the rear rim is wider to better match the front (internal width up from 21mm to 24mm), the set is 40g lighter, and the hubs now have tuneable bearing preload.

The extra air volume at the rear means you can run a few PSI less for the same feel. On the road the CS5060 keeps the character of the previous generation: it accelerates quickly, absorbs road imperfections better than many carbon-spoked rivals, and still feels direct and stiff when you put the power down.

Prefer a shallower, more all-round rim? The CS4045 uses the same platform with a 40mm front and 45mm rear rim.

Hubs

All bearings need the right preload to run smoothly and last. The 2026 hubs are preset at the factory for road bikes with 10–12N·m of thru-axle torque. If the bearings feel off after installation, loosen the grub screw, adjust the preload with the wheel clamped in the bike as ridden, then retighten. If play appears later in the life of the bearings, tighten the preload collar to restore smooth running.

Rotor lock ring note: because of the preload design, the 2026 CRW wheels only work with Center Lock rotor lock rings that have the tool pattern on the outside. A suitable lock ring is included and fits a standard 16-notch bottom bracket tool.

Available Options

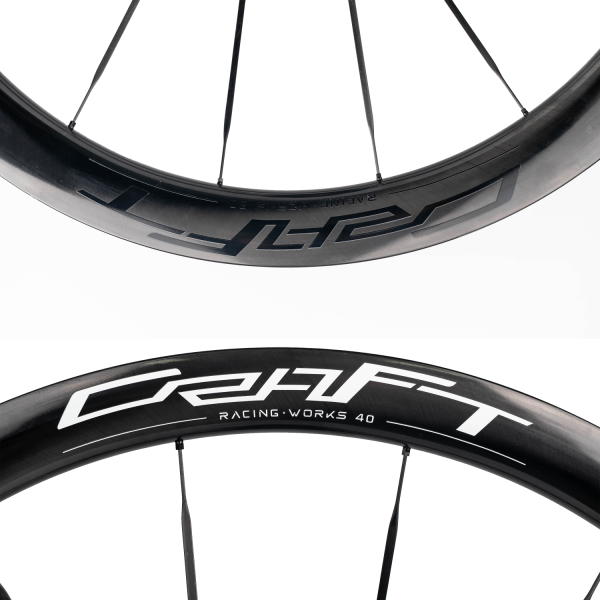

✔ Decals – Black Decals or White Decals

✔ Freehub – Shimano HG, SRAM XDR, Campagnolo 10-12 Speed or Campagnolo N3W

Specifications

✔ Rim depth: 50mm front / 60mm rear

✔ Rim width: Front 25mm internal / 34mm external, rear 24mm internal / 32mm external

✔ Weight: 1250g ±2% per set

✔ Hubs: 36T star ratchet, tuneable bearing preload

✔ Spokes: 16 front / 20 rear, aero-blade carbon

✔ Brake: Disc brake, Center Lock

✔ Axle: 100 × 12mm front / 142 × 12mm rear thru-axle

✔ Freehub: Shimano HG (11-speed), SRAM XDR, Campagnolo 10-12 Speed or N3W

✔ Tubeless: Compatible, hooked rim

✔ Tyre size: 28–45mm

✔ Max tyre pressure: 100psi or the tyre's maximum, whichever is lower

Kindly note: stock availability shown online may not be up to date. Please WhatsApp us to confirm before ordering.
